Structural Engineering for Roof-Mounted Solar Projects
Structural engineering plays a crucial yet often overlooked role in the success of rooftop solar projects. It determines whether the roof can support the added weight of solar panels without compromising safety or increasing costs unnecessarily. Poor structural planning can doom a project before it even begins, so understanding the process is vital.
In this article, our in-house team of structural engineers at Pure Power outlines the general steps involved in analyzing a rooftop solar project’s structural integrity. We won’t dive into complex calculations—those are best left to our expert engineers—but will instead focus on the broader process.
### Three Key Steps for Structural Feasibility
There are three primary steps to assess the structural viability of any rooftop solar installation:
1. **Assess Current Roof Framing Capacity**

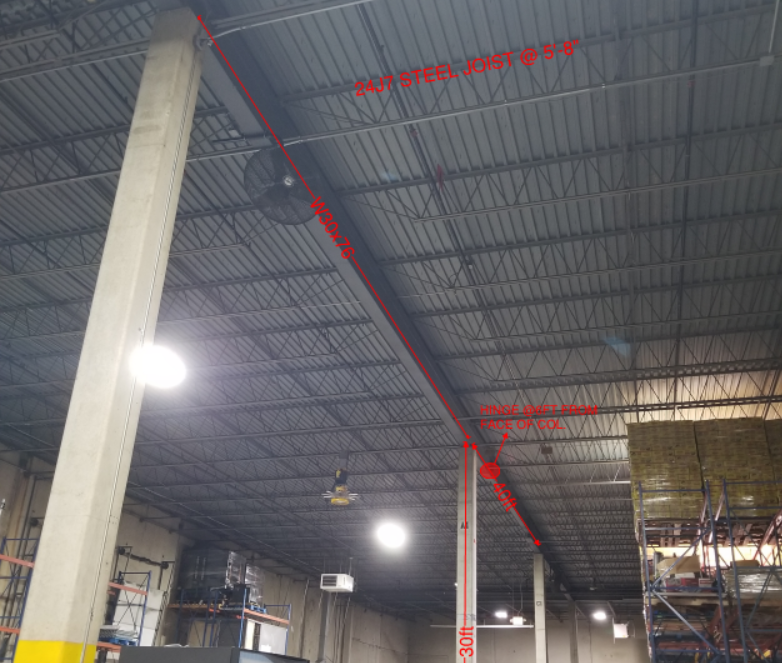

The first step involves a thorough examination of the existing roof structure to gauge its ability to bear additional loads. Both newly constructed roofs and older ones must be evaluated to ensure they can safely accommodate the extra weight from the solar system. For existing buildings, detailed architectural drawings may not always be available, making a physical inspection essential. During these inspections, engineers measure structural elements and visually assess their condition. Rarely, more specialized lab testing might be needed for precise evaluations, such as coupon tests to determine steel grades.
2. **Choose the Appropriate Racking & Attachment System**
Once the roof’s capacity is determined, the next step is selecting an appropriate racking system—whether ballasted, fully attached, or hybrid. This decision typically depends on the findings from Step One, as each solar array carries different weight requirements. Manufacturers need to adjust their designs based on the recommended additional capacity provided earlier.
3. **Verify Structural Compatibility with the Solar System**
If the initial assessment confirms that the roof can handle the chosen solar system, this step is straightforward. However, if the current structure falls short, more advanced solutions are required. In such cases, retrofitting the roof becomes necessary to ensure the solar project remains feasible.
### Enhancing Existing Roof Structures for Solar Systems
When retrofitting is required, several methods can strengthen the roof’s structural capacity:
1. **Load Redistribution**
This approach involves shifting loads from weaker structural elements to stronger ones by adding new elements capable of transferring the load effectively. While effective, this method often demands significant modifications and planning.
2. **Adding New Elements**
Replacing weaker structural members with stronger ones is another option. However, this tends to be costly and logistically challenging due to existing architectural constraints, labor expenses, and potential delays in project timelines.

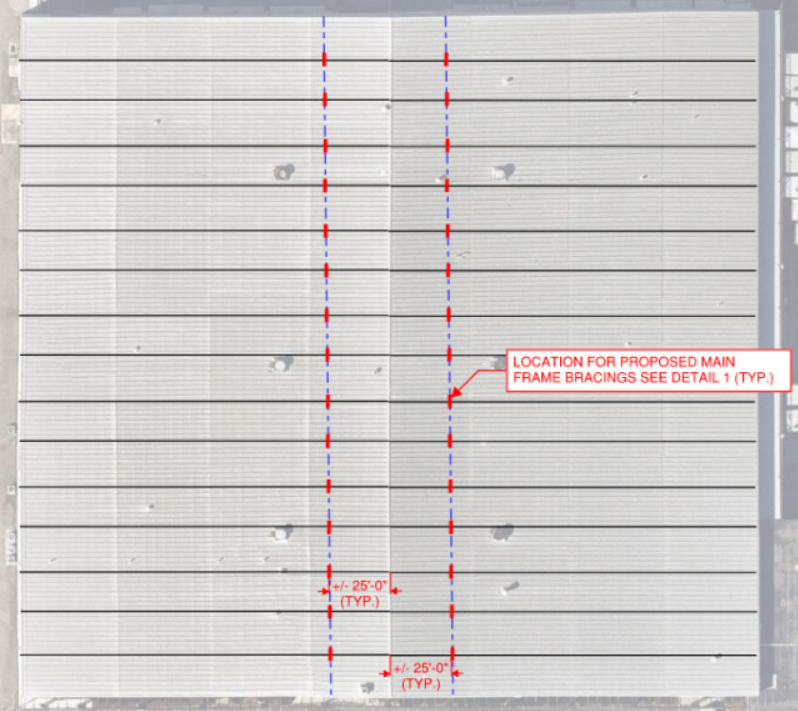

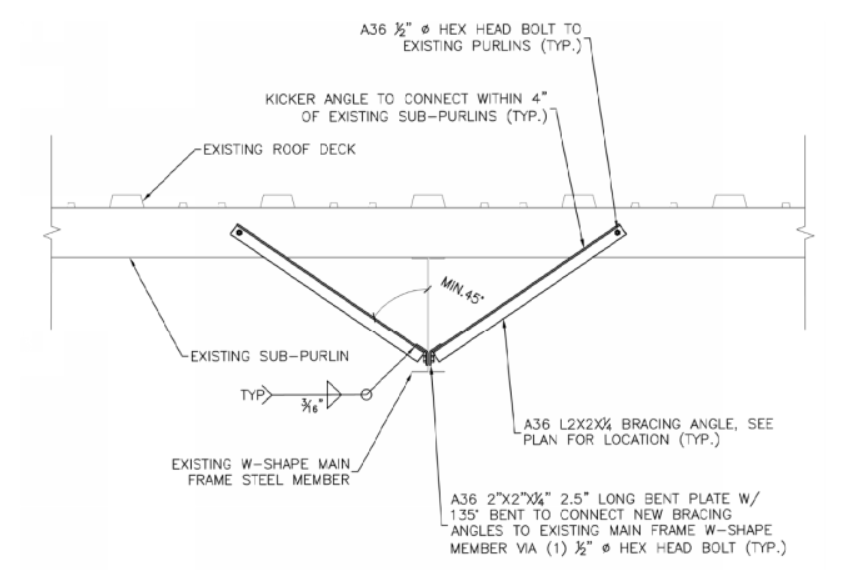

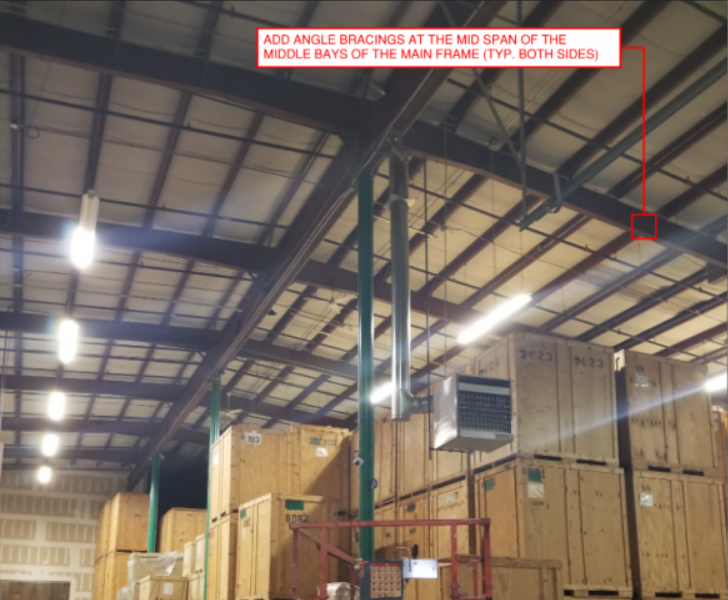

3. **Reinforcing Existing Members**
Reinforcement is generally preferred because it’s cost-effective, efficient, and easier to implement. By adding supplementary materials to the original structure, engineers can bolster its ability to withstand additional stresses from the solar system. Naturally, the existing members must be in good condition for this approach to succeed.
### Compliance with Modern Building Codes
Most U.S. states now adhere to updated versions of the International Building Code (IBC) and International Residential Code (IRC), with localized adjustments. Prior to 2015, there was no specific guidance regarding rooftop solar panel loading criteria. Since then, newer editions like IBC 2015 and 2018 have introduced stricter requirements. These codes emphasize considering snow and wind loads when designing rooftops for solar installations.
For example:
- **IBC 2015 Section 1603.1.8.1**: Requires specifying the dead load of rooftop-mounted photovoltaic systems.
- **Section 16.12.5.2**: Includes snow drift loads caused by PV panels.
- **R324.4.1**: Mandates designing roof structures supporting solar panels for applicable live loads.
- **R907.2**: Specifies wind resistance standards for rooftop-mounted PV systems.
Additionally, the American Society of Civil Engineers (ASCE) guidelines adopted by IBC 2018 treat PV panels as dead loads. This change introduces complexity, particularly in regions prone to seismic activity. Live loads on roofs with elevated solar arrays depend on their placement. Meeting these evolving regulations requires experienced structural engineers familiar with current codes to optimize designs economically and efficiently.
Engaging top-tier engineering firms ensures smooth integration of PV systems while minimizing project costs. Knowledgeable engineers can address code compliance issues upfront, streamlining the entire process and reducing long-term expenses. After all, a well-planned solar project not only meets safety standards but also maximizes efficiency and longevity.
---
By adhering to these principles, rooftop solar installations can thrive sustainably and securely, paving the way for greener energy futures.
