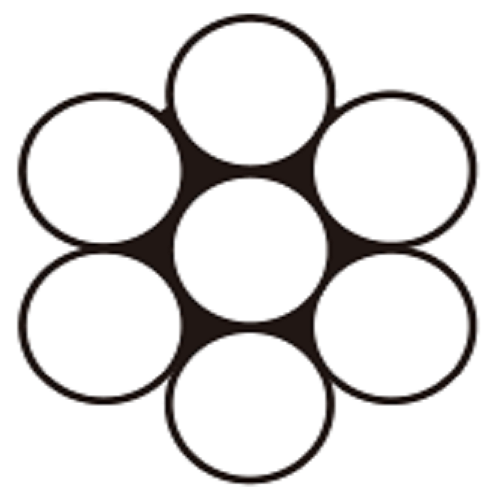

The 1x7 Stainless Steel Wire Rope is a strong and durable cable that is commonly used in a variety of applications, including marine, construction, and industrial settings. This wire rope is constructed with seven strands of wire, which are twisted together to form a single cable. The outer layer of the cable is made from stainless steel, which provides excellent resistance to corrosion and other forms of damage. 1*7 Stainless Steel Wire Rope,1x7 stainless steel wire rope,304 stainless steel wire rope Jiangsu Juke Metal Products Co.,Ltd. , https://www.jsjukemetal.com
If you need to introduce the 1x7 Stainless Steel Wire rope to someone, you can start by explaining its basic construction and properties. You can mention that it is a versatile and reliable cable that is suitable for many different types of applications. You can also highlight its strength and durability, which make it ideal for use in heavy-duty settings. Finally, you can discuss some of the specific uses for this wire rope, such as in marine rigging, hoisting equipment, and structural support systems. Overall, the 1x7 stainless steel wire rope is an excellent choice for anyone who needs a strong and reliable cable that can withstand harsh conditions and heavy loads.
5636 X-ray Baggage, Mail and Small Parcel Scanner for Screening Small Scale Objects
**5636 X-Ray Baggage, Mail and Small Parcel Scanner for Screening Small Scale Objects**
The SF5636 X-ray scanner is a high-performance system designed to inspect small-scale objects such as baggage, mail, and parcels. It combines advanced imaging technology with user-friendly features to ensure accurate detection and efficient screening processes.
**General Specifications:**
- **Tunnel Size:** 560 (W) × 360 (H) mm
- **Conveyor Speed:** 0.22 m/s
- **Conveyor Max Load:** 150 kg
- **Single Inspection Dosage:** < 1.01 μG
- **Film Safety:** Guarantee ISO 1600 Film
- **Leakage Radiation:** < 0.1 µGy/h
- **Steel Penetration:** 40 mm
- **Spatial Resolution:** 1.0 mm Horizontal and Vertical
- **Wire Resolution:** 40 AWG
- **Power Requirement:** 220 V AC (±10%) 50 ± 3 Hz
**X-RAY GENERATOR:**
- **Orientation:** Upward
- **Tube Current:** 0.4–1.25 mA (adjustable)
- **Anode Voltage:** 80–160 kV (adjustable)
- **Angle:** 80°
- **Cooling/Working Periods:** Sealed oil bath with forced air / 100% duty cycle
**OPERATING ENVIRONMENT:**
- **Storage Temperature:** -20°C to 60°C
- **Operating Temperature:** 0°C to 45°C
- **Relative Humidity:** 20 to 95% non-condensing
- **System Power:** 220 VAC (±10%) 50 ± 3 Hz
- **Power Consumption:** 1.0 kW (Max)
- **Noise Level:** < 55 dB
**Computer Specification:**
- **Processor:** Intel i3-4340 (Dual Core, 4 Threads), 3.6 GHz, 22nm, 54W
- **Memory:** 4 GB DDR3 Laptop Memory
- **Hard Disk:** 1 TB
**X-RAY Sensor:** L-shaped array detector, 24-bit
**Image Performance System:**
1. **Display:** High-resolution 19-inch color LCD display
2. **Color Quality:** 24-bit real colors based on material types
3. **Edge Enhancement:** Enhanced object contour edges for clearer visuals
4. **Super Image Enhancement:** Improved image detail clarity
5. **High Penetration Display:** Increases contrast in bright areas for better visibility of easily penetrable materials
6. **Low Penetration Display:** Enhances contrast in dark areas to highlight difficult-to-penetrate regions
7. **Magnifier:** Partial magnification function
8. **Brightening/Dimming:** Adjust image brightness
9. **Image Recurrence:** Displays the last twenty images and allows processing of any one
10. **Image Restoration:** Restore image to original state
11. **Image Storage:** Real-time storage of images during operation
**Multi-energy:** Switch between high and low energy modes for optimal imaging
**Color Material Identification:**
- Organic materials in orange
- Inorganic materials in blue
- Mixtures in green
Assists in detecting drugs and explosive powders
**Special Features:**
1. **Network Interface:** Supports LAN connectivity and multi-terminal baggage scanning simultaneously
2. **Safety Ray Control:** Automatically controls radiation transmission to prevent errors
3. **One-Key Shutdown:** Quick and safe shutdown by rotating a key
4. **Eagle Eye:** Easily view magnified areas
5. **Self-Diagnosis Function:** Automatically alerts for malfunctions to enable prompt maintenance
6. **TIP and Training Software, Free Programmable Keys, Real-Time Diagnostic**
7. **Display Date/Time, Baggage Counter, User ID Number**
8. **Review Feature, Recall Previous Images, Zoom Overview, Stepless Zoom**
**Detail Photo:**
